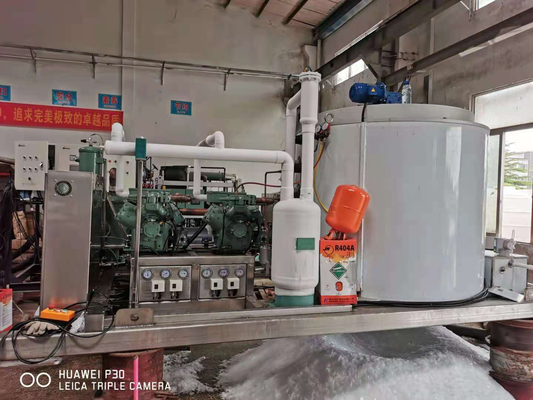

30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine

30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine

  • 30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine
  • 30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine
  • 30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine
  • 30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine
30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine
جزئیات محصول:
محل منبع: گوانگدونگ، چین
نام تجاری: changier
گواهی: ce, ISO
پرداخت:
قیمت: $35,000.00 - $38,000.00/sets
جزئیات بسته بندی: بسته بندی چوبی
قابلیت ارائه: 100 ست/ست در ماه
مخاطب
توضیحات محصول جزئیات
صنایع قابل اجرا: مزارع، کارهای ساختمانی، رستوران، انرژی و معدن، هتل ها، صنعت شیلات، صنعت ماهیگیری، خنک کننده ماهی، خن وضعیت: جدید
شکل یخی: پوسته پوسته شدن یخ ولتاژ: 3P
قدرت: 1200 وات ابعاد (L*W*H): 1680mm*1520mm*1450mm
وزن: 1200 کیلوگرم ضمانتنامه: 1.5 سال
نکات کلیدی فروش: آسان برای کار کردن ظرفیت ذخیره سازی یخ: به اندازه سطل یخ بستگی دارد
گزارش تست ماشین آلات: ارائه شده است بازرسی خروجی ویدیویی: ارائه شده است
نوع بازاریابی: محصول داغ 2021 گارانتی قطعات اصلی: 1 سال
اجزای اصلی: PLC، پمپ، موتور، کمپرسور برند کمپرسور: بیتزر، کوپلند
کاربرد: صنعتی سیستم کنترل: کنترل برنامه زیمنس PLC
مواد: فولاد ضد زنگ SUS304 اجزای تبرید: دانفوس
اجزای الکتریکی: LG (LS) مبرد: R22 یا R404a
ضخامت یخ: 1.8mm~2mm تایپ کنید: صنعتی
خدمات پس از فروش: پشتیبانی آنلاین و پشتیبانی فنی ویدیویی خدمات پس از گارانتی: خدمات نگهداری و تعمیرات میدانی
بندر: شانگهای

Industrial flake ice machine overview:

Large-scale industrial flake ice machines are widely used in industrial production or self-built ice factories due to the advantages of high refrigeration efficiency and large ice output. In areas with sufficient water resources, it is recommended to choose a water cooling system or an evaporative cooling system. Since the cooling effect of the air cooling system is relatively poor, it is only suitable for use in areas where water resources are scarce.

Large industrial flake ice machines should be equipped with ice storage with cold source. The size of the ice storage room is recommended to be configured according to 1/2 of the daily output. In special cases, the customer decides by himself. Large industrial ice machines are generally used in conjunction with ice storage and ice delivery systems.

Features:

1. High ice-making efficiency;

2. The power is relatively large, and the power supply capacity needs to be determined;

3. Color man-machine interface, the operation of the unit is clear at a glance, the operation is simple, and the maintenance is convenient;

4. The unit can choose piston/screw compressor;

5. There is no standard ice storage room, but non-standard customization is possible;

Scope of application:

1. Preservation of raw materials in food factories and pre-cooling of food;

2. Pre-cooling, preservation and transportation of live-killed livestock and poultry in meat processing plants;

3. Chemical plant reaction kettle, raw material cooling, machine cooling and environmental cooling;

4. Concrete pouring and cooling in the construction industry, concrete mixing and adding;

5. Ice factory;

6. Ocean fishing seafood preservation;

7. Mine cooling.

30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine
30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine 0

Technical parameter:

Model

KP05

KP10

KP20

KP30

KP50

KP80

KP100

KP200



Capacity (Tons/24hrs)

0.5

1

2

3

5

8

10

20

Refrigerant

R22/R404a/R507

Compressor Brand

Danfoss

Bitzer/ Refcomp

Cooling Way

Air Cooling

Air/ Water Cooling

Water

Compressor Power

3

5

9

12

28

34

56

102

Ice Cutter Motor

0.2

0.2

0.37

0.37

0.37

0.75

0.75

1.5

Power of Circulating Water Pump

0.09

0.14

0.14

0.15

0.25

0.25

0.55

0.75

Power of Water Cooling Pump

/

/

/

/

2.2

4

4

5.5

Cooling Fan Motor

0.38

0.38

0.38

0.37

0.75

1.5

1.5

/

Ice Machine Size

L (mm)

1280

1280

1600

1663

1680

2200

2200

4150

W (mm)

800

1250

1350

1420

1520

1980

1980

2157

H (mm)

800

893

1090

14710

1450

1700

1700

2250

* Power supply: 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P;

  440V/60Hz/3P.

* Standard conditions: water temperature: 21℃;ambient temperature: 25℃;condensing temperature: 40℃.

* Ice making capacity would be changed depending on installation place, refrigerator's freezing capability, or surrounding usage environment such as outside temperature.
* The above data is subjected to the final design without notice.



 Part 1: High Quality Flake Ice

The flake ice is  dry, pure, powder-less, not easy to block, thickness is about 1.8mm-2.0mm, without edges or corners which would avoid damage to products. So it is widely used in refreshing vegetable/fruit and freezing fish and meat.





30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine 1



Part 2: Features

1. Automatic monitoring system: Intelligentized mirco-computer control, don't need to arrange people to monitor the machine, saving you the labor cost.

2. Emergency Alarm: It will send out the emergency signals if there is any malfunction. Also the machine will start the program to project itself and display the cause on the screen.

3. Evaporator Drum: stainless steel SUS304 or carbon steel optional. Exquisite welding and hardening ensures high-efficient heat transfer and longer service life.

4. Integrated Design with ice bin: ice bin will be installed under the flake ice machine and flake ice will fall into the bin directly and stay frozen inside.

5. Salt Water dosing pump will be offered: making the flake ice dry, thick and not easy to melt.


30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine 2

 Layout of flake ice machine with Ice storageHigh Qu, ality Evaporator Drum

30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine 3

Salt Water Dosing Pump



Part 3: Famous Brand  Accessories

Item

Name of Components

Brand Name

Original Country

1

Compressor

BITZER

Germany

2

Ice Maker Evaporator Grid

changier

China

3

Water cooled condenser

changier

China

4

Refrigeration components

DANFOSS/CASTAL

Demark/Italy

5

PLC Program control

SIEMENS

Germany

6

Electrical components

LG (LS)

South Korea



30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine 4


Production Process

30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine 5

Changier Project

30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine 6

changier main products include: direct cooling ice block machine, large edible ice cube machine, commercial ice maker, tube ice machine, plate ice machine, fresh water flake ice machine, sea water flake ice machine, automatic conveying system, cold room, ice crusher machine, low temperature water chiller, automatic packing system, and other series of ice making equipments.

30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine 7

Why Choose Us
01 Our products exported to more than 100 countries

02 Owing numbers of patented technologies
03 Company has been established for more than 10 years
04 With four subsidiaries
05 Multiple overseas cooperation agencies
06 Machine serving time overs 12 years
07 Global fast technology support and shipping service
08 Energy-saving and environmental protection technology
FAQ
1.How about the voltage of Ice machine? Answer:Standard Voltage:380v/3ph/50hz Non standard Voltage can be customized,220v,440v,480v.the cost is extra.
2.What Certificate of Origin can we provide? Answer:Such as CO,FORM A,FORM B,FORM E,FORM F,FTA etc.
3.How about the payment method? Answer:lt is normally 30% T/T in advance and the balance when shipment Other payments also possible,depand on negotiable and order condition.
4.What is the warranty? Answer: we can assure you 12months against manufacturing defect.During garantee period,we supply you free spare parts by seller to bear the freight.

5.How about the cooling type? Answer:we suggest you choose air cooling when the daily capacity less than 3000kg/day ,air cooling is easy to be installed and save water. But the bigger ice machine choose water cooling,it's steady to produce ice and water circulation use.
